Product Introduction

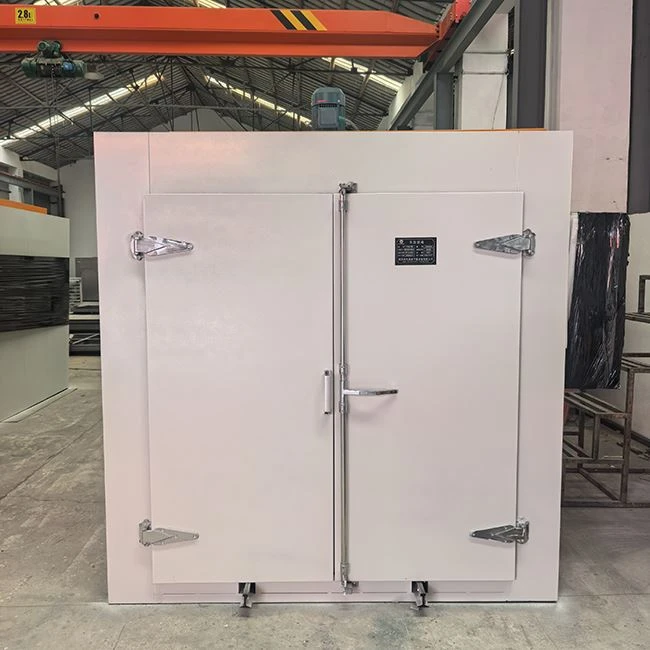

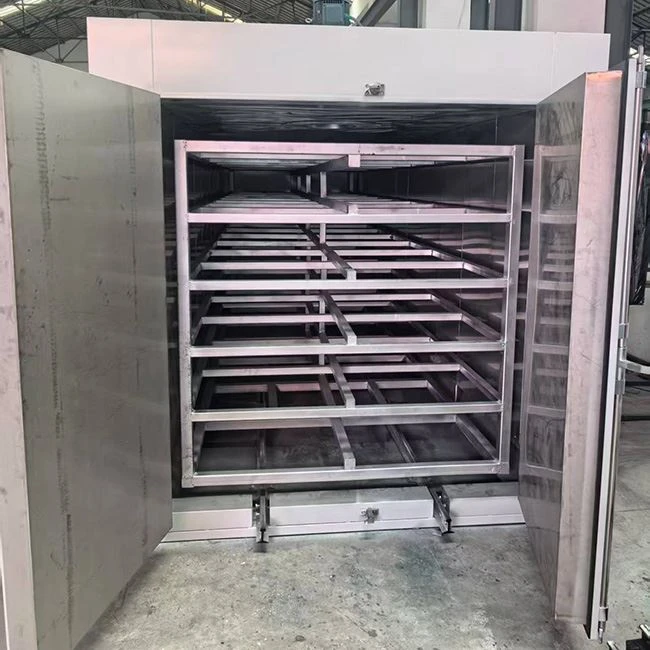

Explosion-proof hot air circulation oven is a special piece of equipment that efficiently dries materials while guaranteeing absolute safety for use in specific hazardous environments. Its core feature lies in the term "explosion-proof". When flammable and explosive gases or dust may accumulate inside an oven, ordinary ovens pose severe safety hazards. By adopting specialized structural designs, this model eliminates explosion and combustion risks at the source.
Working Principle
The core of the explosion-proof hot air circulation oven lies in a closed-loop explosion-proof system. First of all, the heat source is fully isolated to avoid direct contact with flammable and explosive substances. Secondly, hot air circulates continuously inside the chamber. High-efficiency filters keep the concentration of solvent vapors and dust evaporated from materials below the safe threshold. Most importantly, all electrical components, fans and control panels are built with explosion-proof structures. For instance, flameproof enclosures block internal sparks, ensuring hazard-free operation throughout the whole working cycle.
Features
Explosion-proof design effectively eliminates explosion risks caused by electric sparks or high temperatures.
The hot air circulation system delivers uniform heating and consistent temperature during baking, improving product quality and production efficiency.
Equipped with automatic control functions. Temperature sensors and PLC controllers enable precise temperature adjustment and real-time operation status monitoring, further enhancing equipment reliability and ease of operation.
Technical parameters
| Number | MOdel | Field Standard mdel | Technical data | Accessiories |
Total weight (kg) |
||||||||||
|
Evaporation area (m2) |
Efficient volume (m3) |
Drying capacity (kg/lot) |
Steam consumption (kg/h) |
Radiator area (m2) |
Electric heating power (kw) |
Fan volume (m3/h) |
Fan power (kw) |
Oveall dimensions W*D*H (mm) |
Equipped drying cart(set) | Drying pallet tobe equipped(pc) | Temperature automatic control box | ||||
| 1 | CT-C-0 | RXH-5-C | 6 | 1.0 | 40 | 8 | 8 | 6 | 3450 | 0.45 | 1380*1200*2000 | 1 | 16 | Available | 820 |
| 2 | CT-C-I | RXH-14-C | 14.1 | 2.6 | 120 | 18 | 20 | 15 | 3450 | 0.45 | 2260*1200*2000 | 2 | 48 | Available | 1580 |
| 3 | CT-C-IA | RXH-7-C | 7.1 | 1.3 | 60 | 10 | 10 | 9 | 3450 | 0.45 | 1380*1200*2000 | 1 | 24 | Available | 820 |
| 4 | CT-C-II | RXH-27-C | 28.3 | 4.9 | 240 | 36 | 40 | 30 | 6900 | 0.45*2 | 2260*2200*2000 | 4 | 96 | Available | 1800 |
| 5 | CT-C-IIA | RXH-27A-C | 28.3 | 4.9 | 240 | 36 | 40 | 30 | 6900 | 0.45*2 | 4280*1200*2270 | 4 | 96 | Available | 1880 |
| 6 | CT-C-III | RXH-41-C | 42.4 | 7.4 | 360 | 60 | 80 | 45 | 10350 | 0.45*3 | 2260*3200*2000 | 6 | 144 | Available | 2100 |
| 7 | CT-C-IIIA | RXH-41A-C | 42.4 | 7.4 | 360 | 60 | 80 | 45 | 10350 | 0.45*3 | 3240*2200*2000 | 6 | 144 | Available | 2210 |
| 8 | CT-C-IV | RXH-54-C | 56.5 | 10.3 | 480 | 80 | 100 | 60 | 13800 | 0.45*4 | 4280*2200*2270 | 8 | 192 | Available | 2800 |
| 9 | CT-I | RXH-14-B | 14.1 | 2.6 | 120 | 20 | 23 | 15 | 3450 | 1.1 | 2480*1200*2375 | 2 | 48 | None | 1220 |
| 10 | CT-II | RXH-27-B | 28.3 | 4.9 | 240 | 40 | 48 | 30 | 5230 | 1.5 | 2480*2200*2438 | 4 | 96 | None | 1530 |
| 11 | CT-III | RXH-41-B | 42.4 | 7.4 | 360 | 60 | 72 | 45 | 9800 | 2.2 | 3430*2200*2620 | 6 | 144 | None | 2110 |
| 12 | CT-IV | RXH-54-B | 56.5 | 10.3 | 480 | 80 | 96 | 60 | 11800 | 3 | 4460*2200*2620 | 8 | 192 | None | 2300 |
Outer wall materials of the oven include A,steel;stainless steel;inner wall maerials;sluminum alloy,stainless steel;drying trolly matrials;A,steel,stainless steel;drying tray materials;aluminum stainless steel,galcanized sheet.
Application
Explosion-proof hot air circulation ovens feature highly diversified application scenarios. In the pharmaceutical industry, they are used for drying raw pharmaceutical materials and Chinese herbal extracts. Compliant with GMP standards, the equipment maintains sterile working environments. For the chemical industry, explosion-proof construction is a mandatory requirement when processing flammable and explosive organic solvents and powdery materials. In the food industry, the oven is manufactured with food-grade stainless steel to prevent heavy metal contamination. In the new energy sector, drying lithium battery cathode materials demands superior temperature uniformity. The intelligent control system of the oven delivers a precise temperature accuracy of ±1℃.
