Gas-fired Drying Oven

The gas-fired drying oven uses natural gas or LPG to generate hot air for industrial drying, curing, preheating and thermal treatment. It is usually considered when production capacity, operating cost or plant energy supply make gas heating more practical than electric heating. The system can be arranged as direct-fired or indirect-fired, depending on whether combustion products may contact the material.

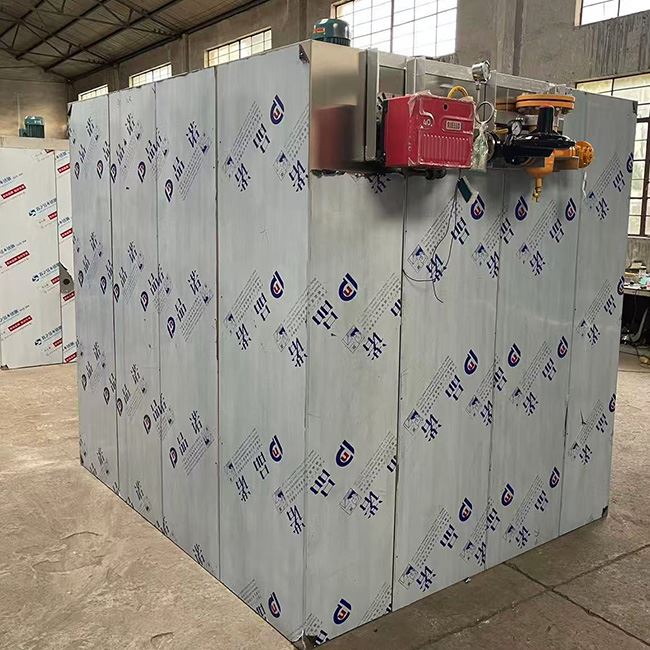

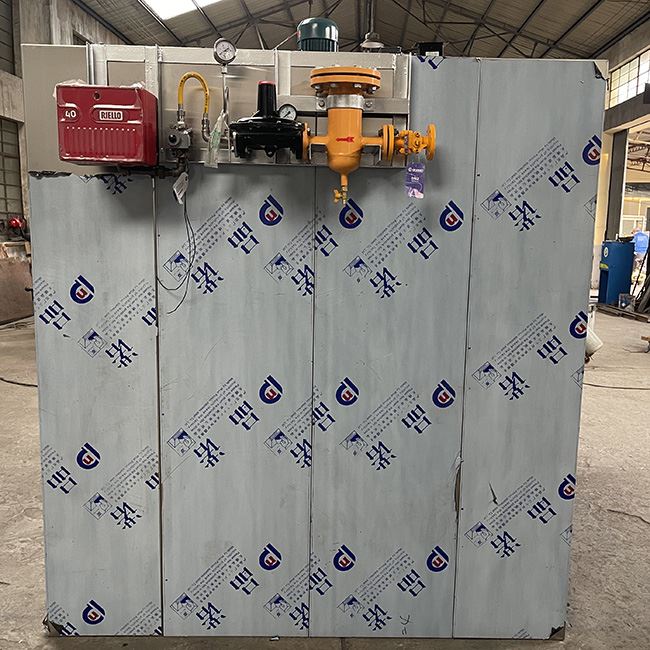

The burner burns fuel and releases heat into the process air. In a direct-fired oven, combustion gases mix with the drying air and enter the chamber together. This arrangement is suitable when the material and process allow contact with combustion products. In an indirect-fired oven, a heat exchanger keeps the flue gas separate from the drying air, which is useful when cleaner process air is required.

The fan and duct system circulate heated air inside the chamber. Moisture and volatile gases are discharged through the exhaust system, while fresh air is introduced to maintain drying efficiency. Burner output, airflow and exhaust are adjusted to match the drying load and temperature requirement.

Indirect heating generates hot air, ensuring the cleanliness of the circulating hot air and preventing contamination of the workpieces inside the oven; high heat transfer efficiency; large-capacity forced convection circulation of hot air, resulting in high heat exchange efficiency and uniform temperature within the drying chamber; smokeless operation, with emissions below national environmental protection standards, and a Ringer's density of zero; remote or local fully automatic heating control system, convenient to operate and easy to manage centrally or individually; burners can be classified as single-stage, two-stage, or proportional control based on the product process requirements for oven temperature uniformity; compared to electric heating ovens, oil/gas-fired ovens have lower operating costs.

This Gas-fired Drying Oven is commonly used for industrial drying and heating processes, including:

Drying metal parts after washing or cleaning

Preheating industrial components before further processing

Drying and curing coatings, paint films or powder-coated parts

Batch drying of suitable non-food materials

Thermal treatment of components compatible with gas-fired heating

Applications involving food, chemicals, solvents or flammable vapors should be reviewed against material properties, exhaust conditions and applicable safety requirements.

Each oven is built around the customer's process requirements. Chamber size, temperature range, loading method, airflow pattern, exhaust arrangement and control level can be adjusted to suit the application. Direct-fired or indirect-fired heating is selected based on the material and process conditions. Before production, the main specifications such as chamber dimensions, temperature profile, fuel supply, power supply and acceptance criteria are confirmed with the customer.
