Product Introduction

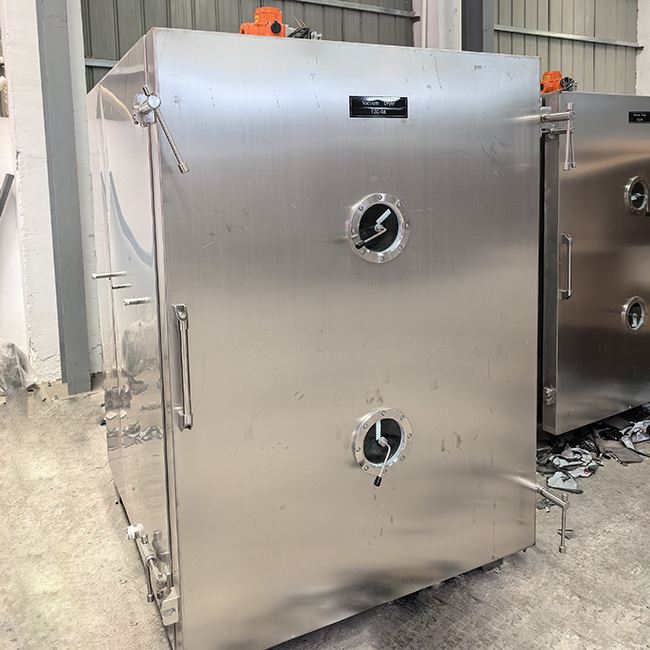

The vacuum drying cabinet is specially designed for drying heat-sensitive, easily decomposable and oxidizable substances. During operation, a certain degree of vacuum can be maintained inside the working chamber, and inert gas can be filled into the chamber. It enables rapid drying of materials with complex compositions in particular. Equipped with an intelligent digital temperature controller, it supports temperature setting, display and automatic control.
Features
The vacuum drying cabinet has reasonable design,reasonable configuration and neat appearance.
Temperature uniformity during use≤±6℃.
The heating power and steam heat dissipation area are configured according to the internal volume of the oven,and the internal and external materials are made of high-quality 304 stainless steel frosted plates.
The main feature of the vacuum drying cabinet is to dry the materials in a vacuum state,and the effect of low-temperature heating and high-temperature heating.

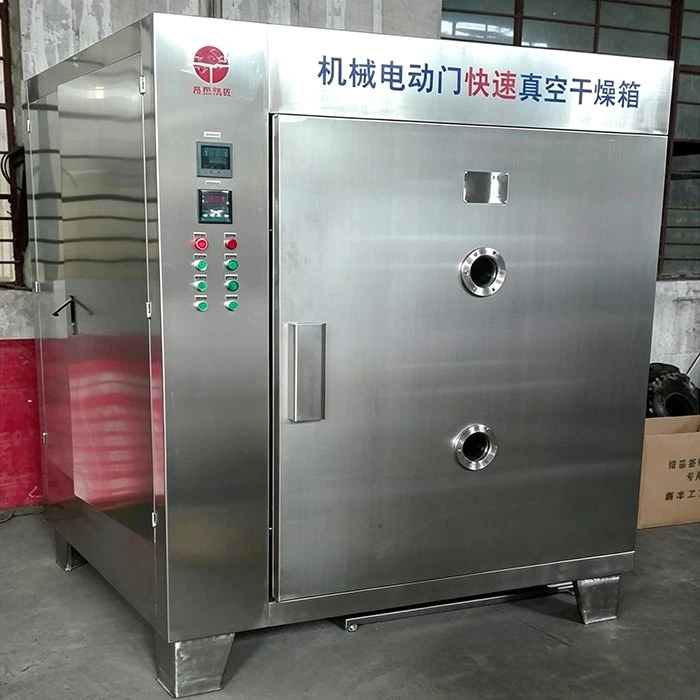

The control is advanced,the temperature control instrument adopts the intelligent digital liquid crystal display instrument to heat the output solid state (SCR) temperature is stable.The PLC program controls the process without the need for staff to operate back and forth.
Heating method,electric heating,steam heating,water circulation heating,heat conduction oil heating,flat heating.
Technical parameters
|
Serial number |
Model |
Liner size mm(D*W*H) |
Temperature ℃ |
Power KW |
Vacuum pump KW |

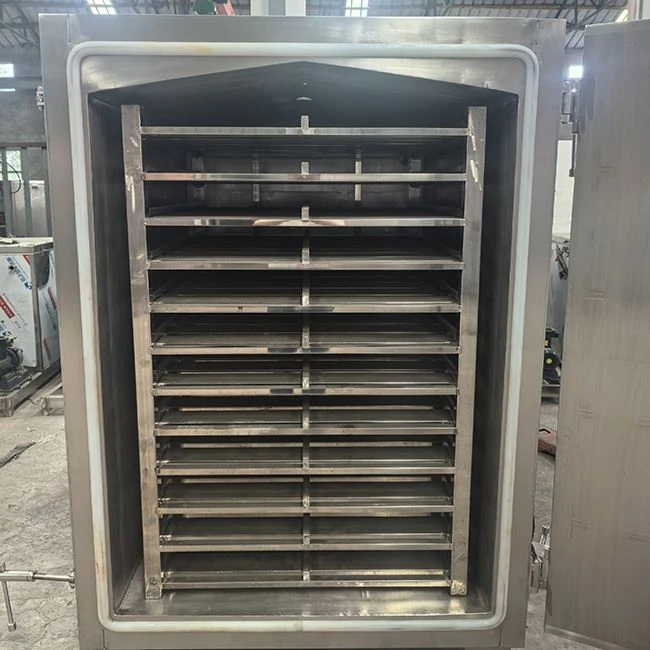

Number of layers |
Baking pan |
|
1 |
FZG-12 |
980*920*1000 |
RT+10-100-150 |
9-15㎡ |
1.5 |
6 |
12 |
|
2 |
FZG-24 |
980*1480*1000 |
RT+10-100-150 |
12-20㎡ |
3 |
6 |
24 |
|
3 |
FZG-32 |
980*1480*1200 |
RT+10-100-150 |
24-35㎡ |
5 |
8 |
32 |
|
4 |
FZG-48 |
1420*1480*1200 |
RT+10-100-150 |
30-40㎡ |
7.5 |
8 |
48 |
|
5 |
FZG-60 |
1420*1480*1450 |
RT+10-100-150 |
35-50㎡ |
9 |
10 |
60 |
|
6 |
FZG-72 |
1420*1480*1700 |
RT+10-100-150 |
40-60㎡ |
11 |
12 |
72 |
|
7 |
FZG-96 |
1900*1480*1700 |
RT+10-100-150 |
50-75㎡ |
13 |
12 |
96 |
Applications
Vacuum drying cabinets are widely used in biochemistry, chemical pharmacy, medical and health care, agricultural scientific research, environmental protection and other research fields for powder drying, baking, as well as disinfection and sterilization of various glass containers. They are especially suitable for fast and efficient drying treatment of heat-sensitive, easily decomposable, oxidizable substances and articles with complex components.
