Product Introduction

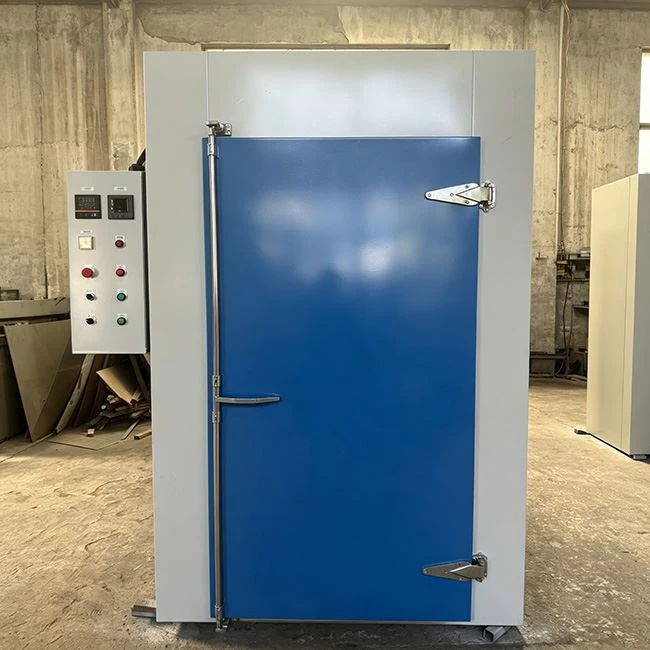

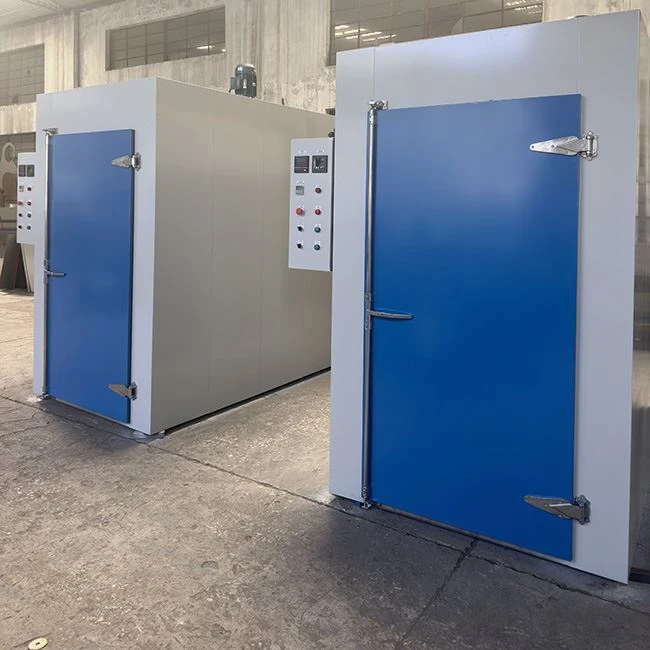

The electrothermal blast drying oven is an industrial device that dries materials through hot air circulation. It is a commonly used instrument, mainly used for drying samples, and can also provide the temperature environment required for experiments.
Features
High temperature control precision: Enables precise temperature control, ensuring stable temperature throughout the drying process.
High drying efficiency: Employs forced convection drying, creating strong airflow over the surface of the items, accelerating moisture evaporation and improving drying efficiency.
Simple and convenient operation: Operation is extremely simple; just place the items in the drying chamber, set the temperature and time, and drying can begin.
High safety: The electrothermal blast drying oven features an explosion-proof design, ensuring no safety hazards during the drying process.
Technical parameters
|
Serial umber |
Model |
Liner size mm(D*W*H) |
Temperature ℃ |
Power KW |
Fan power KW |
Inside configuration |
|
1 |
TC88-7 |
1200*1200*1700 |
RT+10-100-300 |
20-30 |
2.2/1 |
User customization |
|
2 |
TC88-8 |
1700*1600*1700 |
RT+10-100-300 |
25-35 |
1.5/2 |
User customization |
|
3 |
TC88-9 |
2000*1800*2000 |
RT+10-100-300 |
35-40 |
2.2/2 |
User customization |
|
4 |
TC88-10 |
2500*2000*1800 |
RT+10-100-300 |
38-45 |
3/3 |
User customization |
|
5 |
TC88-11 |
3000*2000*2000 |
RT+10-100-300 |
45-55 |
4/3 |
User customization |
|
6 |
TC88-12 |
6000*2500*2000 |
RT+10-100-300 |
60-80 |
5.5/4 |
User customization |
Applications
Electrothermal blast drying ovens are widely used in industries such as electronics, instrumentation, pharmaceuticals, chemicals, food, textiles, printing and dyeing, and metallurgy for drying electronic components, pharmaceuticals, food, and samples in laboratories.
Ordering instruction
The user must inform the oven of the products and effects that need to be dried.
Temperature range and operating temperature.
User placement position of specially made oven(whether assembled or out).
Drying products need to be dried every day.
The shape and placement of the product.
Explain the material requirements inside and outside the oven.
