Product description

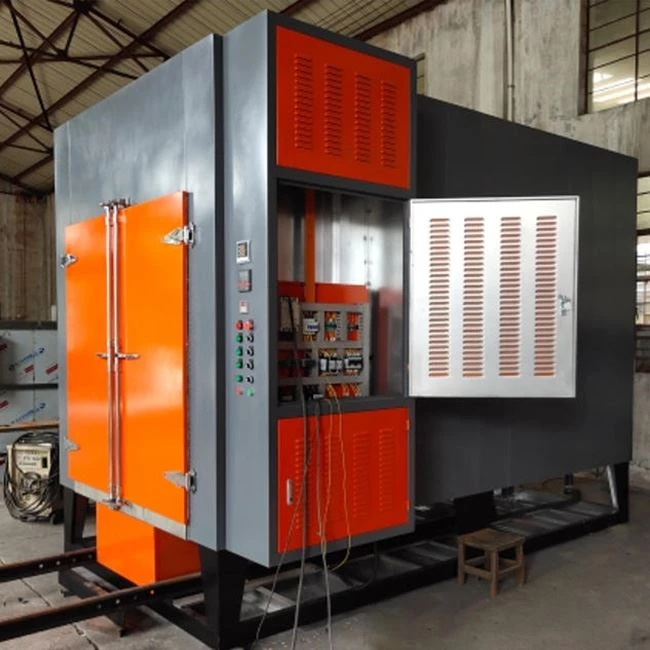

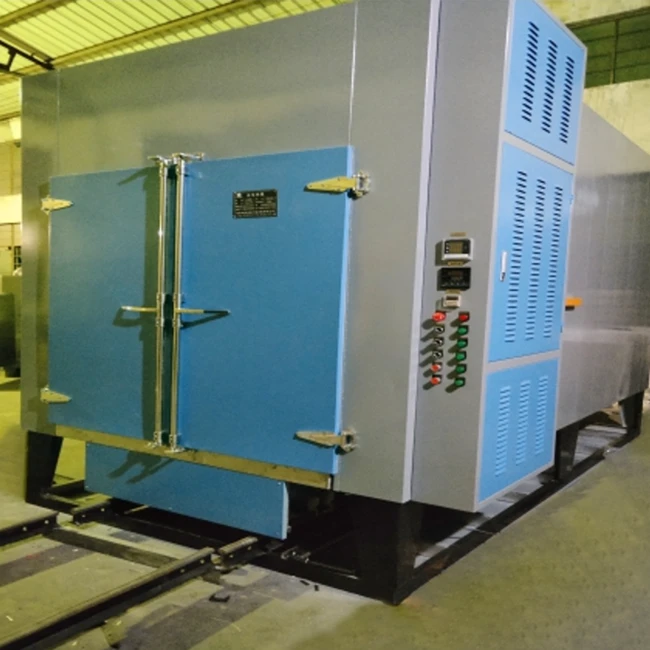

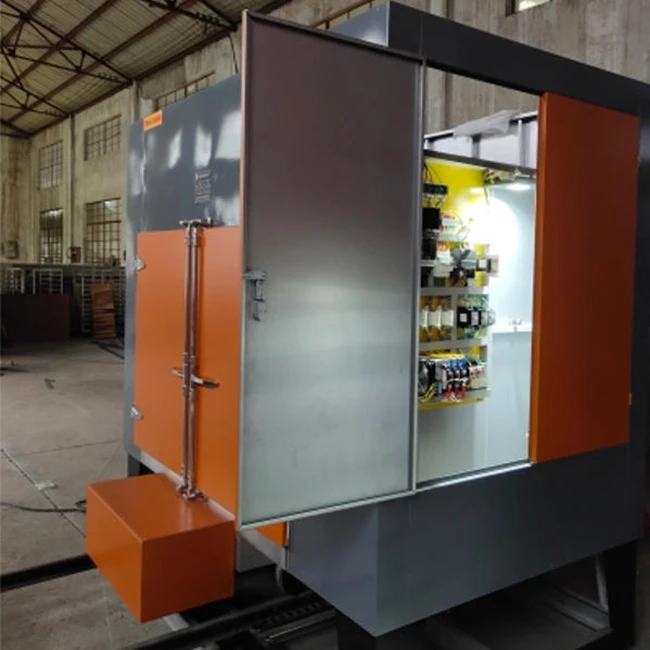

An Electric Trolley Oven is a large-scale industrial heating equipment designed for drying, curing, baking, preheating, and heat treatment processes. Equipped with a movable trolley structure, the oven allows convenient loading and unloading of heavy or large workpieces, making it ideal for batch production and industrial thermal processing applications.
The oven adopts electric heating elements combined with a hot air circulation system to ensure fast heating speed, uniform temperature distribution, and stable operating performance. It is widely used in industries such as automotive manufacturing, metal processing, electrical equipment, coating, composite materials, chemical processing, and new energy production
Principle and Features
Electric trolley ovens rely primarily on a heat source, which is uniformly fed into the oven chamber via an air volume and air conditioning system to dry materials. Heat sources include electric heating, gas, thermal oil, and other heat sources, controlled by a control system to achieve the desired temperature. During operation, the oven maintains a temperature uniformity of ≤±3°C to 5°C. The oven utilizes an advanced human-machine interface (PLC) touch screen and intelligent digital temperature controller. Electrical components are sourced from renowned manufacturers such as Siemens, Schneider, Chint Electric, and Fuji. Fully enclosed trolley drying ovens utilize a floor track to move the trolley in and out, making them suitable for drying heavy materials and workpieces and for tooling.
Technical parameters
|
Model |
Liner size mm (W*D*H) |
Temperature℃ |
Power KW |
Circulation fan KW |
Motor KW |
|
TC88-5 |
800*800*1200 |
RT+10-300-500 |
12-18 |
1.5 |
0.75 |
|
TC88-6 |
1000*1200*1200 |
RT+10-300-500 |
18-25 |
2.2 |
1.1 |
|
TC88-7 |
1800*1500*1700 |
RT+10-300-500 |
28-35 |
2.2/2 |
1.5 |
|
TC88-8 |
2000*1700*1700 |
RT+10-300-500 |
35-45 |
3/2 |
2.2-3 |
|
TC88-9 |
3000*2000*1800 |
RT+10-300-500 |
45-58 |
4/2 |
3-5 |
|
TC88-F |
6000*2000*2500 |
RT+10-300-500 |
65-90 |
5/4 |
5.5 |
Applications
Electric trolley ovens are widely used for drying and hot workpieces in the chemical industry, chemical machinery, electronics, food, plastics, and light industrial machinery.
Optional Configurations
- PLC automatic control system
- Touch screen operation panel
- Explosion-proof structure
- Multi-trolley design
- Stainless steel inner chamber
- Programmable temperature controller
- Exhaust and ventilation system
