Product Introduction
The oil drum oven warms oil drums, metal barrels, and similar drum-shaped containers. It helps reduce the viscosity of drum contents, supports pumping and dispensing, or prepares stored materials for further processing.
The oven can be configured for a single drum or a batch of drums. Chamber size, heating capacity, and drum spacing are matched to the drum dimensions, batch quantity, and available production space. The required temperature and loading arrangement are confirmed during equipment selection.
Nanjing Ranran Tiancheng Drying Equipment Co., Ltd. manufactures industrial drying and heating equipment. Oil drum ovens can be supplied with electric heating, forced hot-air circulation, or another suitable heating arrangement.
The drum contents must be considered during equipment selection. Material properties, temperature limits, vapor generation, container condition, and ventilation requirements all influence the design. Applications involving flammable or volatile substances require a separate hazard assessment before the heating method and protective measures are specified.
Technical parameters
|
Serial number |
Model |
Liner size mm |
Temperature ℃ |
Power KW |
Circulation fan KW |
Dehumidification motor |
Oil drum |
|
1 |
TC88-4 |
1250*1400*1350 |
RT+10-100-150 |
12-25㎡ |
1.5/1 |
025/1 |
4 |
|
2 |
TC88-8 |
1250*1400*2700 |
RT+10-100-150 |
25-35㎡ |
3/1 |
0.37/1 |
8 |
|
3 |
TC88-16 |
5500*2500*1500 |
RT+10-100-150 |
50-180㎡ |
5/3 |
0.37/2 |
16 |
|
4 |
TC88-32 |
2600*5500*1600 |
RT+10-100-150 |
80-320㎡ |
5/4 |
0.37/2 |
32 |
|
5 |
TC88-64 |
2600*11000*1600 |
RT+10-100-150 |
100-380㎡ |
4/4 |
0.37/4 |
64 |
Working Principle
The oven heats drums inside an enclosed chamber. Electric heating elements or another heat source warm the chamber air or designated heat-transfer surfaces. A circulation fan can distribute heated air around the drums to improve heat transfer.
The controller holds the selected chamber temperature for the configured heating cycle. The time required for the drum contents to reach the target temperature is not the same as the chamber air temperature. It is influenced by the material's thermal properties, initial temperature, drum size, fill level, loading arrangement, and heating conditions.
For high-viscosity oils and similar compatible materials, controlled warming can make the contents easier to transfer or dispense. The required temperature and holding time should follow the material supplier's recommendations and the actual production process.
If the drums contain flammable, volatile, or reactive substances, the equipment must be assessed for the specific material and operating conditions. Heating can cause vapor generation or pressure buildup in some containers. Ventilation, ignition-source control, pressure hazards, and any applicable hazardous-area requirements must be evaluated before the oven is specified.
Features
Batch-ready drum loading: One drum or several drums can be processed in a single cycle.
Heat distributed around the drum: Airflow carries heat across the drum surface rather than relying on a single heating zone.
Practical loading access: Doors, racks, trolleys, and internal spacing support safe loading and unloading.
Configurable monitoring: Temperature alarms and optional recording can be included when process documentation is required.
Ventilation designed for the process: Exhaust and air exchange are provided where the application requires them.
Application
An oil drum oven may be suitable for heating compatible drum-contained materials in applications such as:
Lubricating oil warming: Raising oil temperature to support handling or transfer.
High-viscosity material conditioning: Warming suitable materials before pumping or dispensing.
Process preparation: Bringing drum-contained materials to a specified temperature before use or subsequent processing.
The final equipment configuration is determined by the material, drum condition, target temperature, batch size, processing time, and any ventilation or hazard-control needs.
Special oven for oil drums
The company specializes in designing and manufacturing melted liquids for chemical companies (liquid oil drums) Oven.
Design the size of the oven volume according to the user's output.

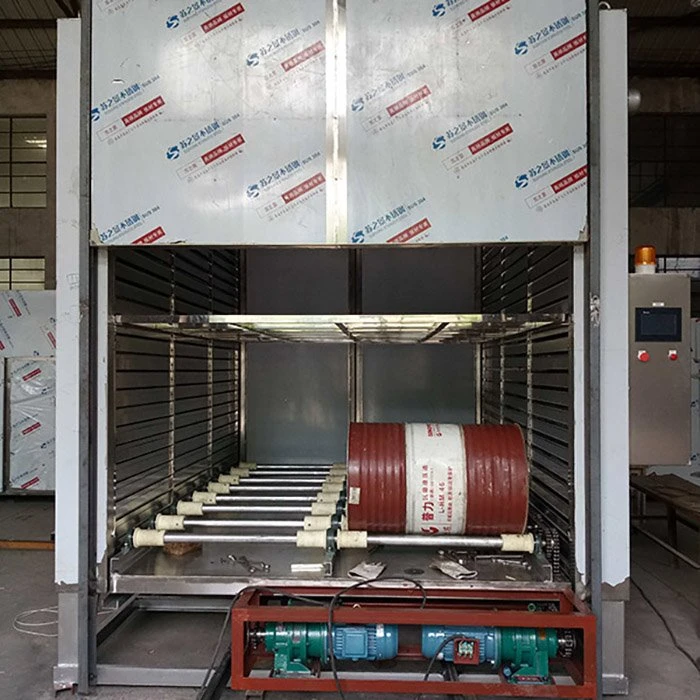

Choose the product (equipment) model and needle according to the concentration of the liquid in the barrel of the user's product for high product concentration, it is recommended to choose the oven to rotate and melt to make the concentration even,which can make products clean and reduce production costs.
The material of this equipment is all made of high-quality 304 stainless steel, and the heat is configured according to the size of the volume.The temperature uniformity of all the ovens of the wind circulation motor during use,and the appropriate exhaust shaft is configures flow fan to reduce air pollution due to heat in the box.
Ordering Instruction
Explain the output/day.According to the output,the volume of the oil drum oven can be selected.
Explain the heating method and how high the temperature is.
Choose material:Q235material,High quality 304 stainless steel,High quality 316L stainless steel.
Whether the explosion-proof grade is selected for the product liquid grade.
Control requirements:Ordinary control(domestic brand ),High-end control(imported configuration from Siemens and Schneider),Program control(Delta PLC,Siemens PLC
