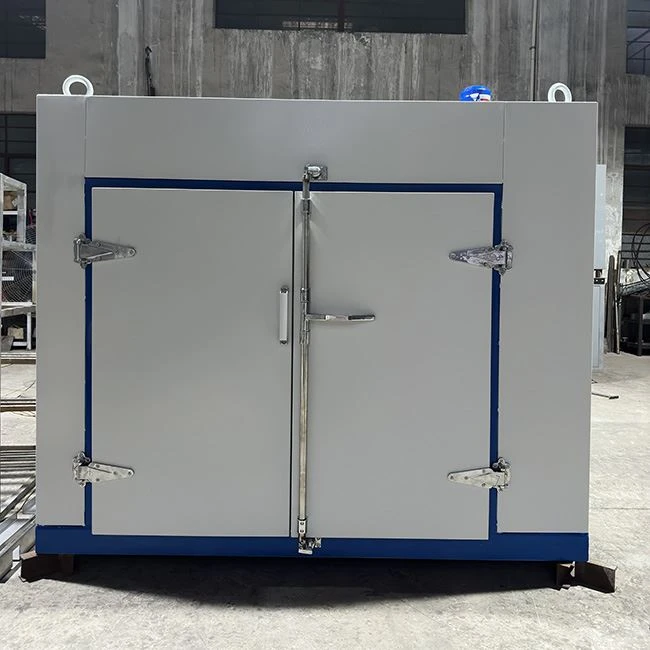

Product Introduction
Curing drying ovens are key equipment used in industrial production for product curing. By precisely controlling temperature and air circulation, they achieve the evaporation of solvents inside materials and structural stability.
Features
Production method ①Ordinary production ②Fully enclosed production.
Configure a reasonable circulation motor according to the volume to ensure that the temperature uniformity in the oven during curing is ≦±3℃.
Matching the heating power according to the volume ( the heating out adopts solid state and SCR) can make the temperature in the oven rise steadily.
Advanced control.All our electrical appliances adopt domestic and foreign brand electrical components and touch screen PLC program control.
Technical parameters
|
Serial number |
Model |
Liner size mm (D*W*H) |
Temperature ℃ |
Power KW |
Fan power KW |
Inside configuration |
|
1 |
TC88-5 |
1000*1000*1200 |
RT+10-100-300 |
15-20 |
1.5/1 |
User customization |
|
2 |
TC88-6 |
1200*1200*1500 |
RT+10-100-300 |
20-25 |
2.2/1 |
User customization |
|
3 |
TC88-7 |
1500*1600*1700 |
RT+10-100-300 |
25-30 |
2.2/1 |
User customization |
|
4 |
TC88-8 |
1700*1700*1800 |
RT+10-100-300 |
30-35 |
3.0/1 |
User customization |
|
5 |
TC88-9 |
2000*1800*2000 |
RT+10-100-300 |
35-40 |
3.0/2 |
User customization |
|
6 |
TC88-10 |
2500*2000*1800 |
RT+10-100-300 |
45-55 |
4.0/2 |
User customization |
Applications
The is widely used in pharmaceutical,drying,electronics,food,scientific research,machinery,vegetables,aerospace and other industries for drying and curing.
Ordering instruction
In order to meet user needs,our company professionally assigns technical engineers to meet user needs.
Non-standard production users must provide accurate product drying process and technical parameters.
The user provides accurate use temperature and accurate placement of products in the oven.
The shape of the dried material and the accurate drying effect.
Control method and configuration requirements.
Our company's technical staff will improve the technical plan drawing to provide user with reference.
Our company's technical engineers will configure the oven material according to the product performance provided by the user.
Material selection
Equipment material:Q235 cold rolled plate,SUS304 stainless steel ,SUS316L stainless steel,stainless steel 201.
Heating material:201 stainless steel,304stainless steel.
Circulating fan blade material:Q235 material,stainless steel 201 material,stainless steel 304 material.
