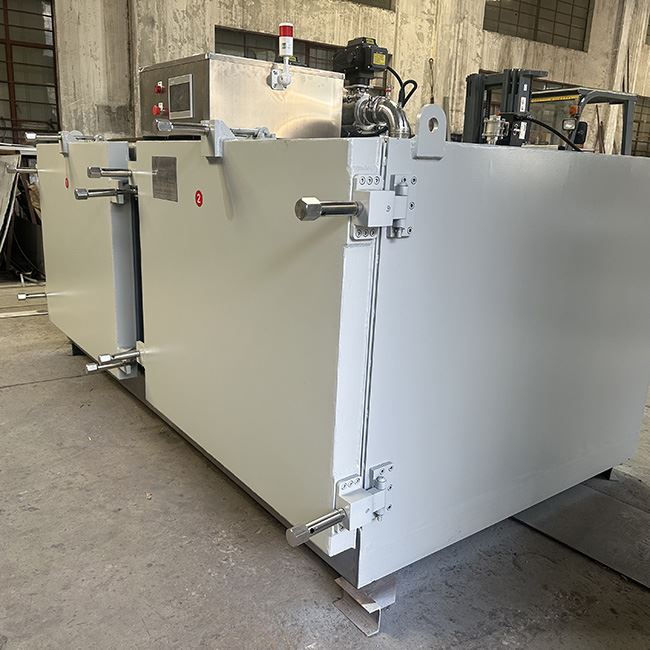

Product Introduction
The steam cable oven is a specialized environmental control device used in cable production, primarily to improve the performance of cable insulation materials. Its core function is to accelerate the stabilization process of the material's internal structure by simulating a high-temperature, high-humidity environment. This equipment has significant application value in industries such as power and telecommunications.
Features
Heating method: steam heating; good sealing effect: no air leakage; energy saving; automatic safety pressure relief function; automatic temperature control function; automatic constant temperature function; and alarm function.
Technical parameters
|
Model |
Inner size (D*W*H mm) |
Temperature |
Number of products |
Automatic safety valve |
Equipped with an exhaust motor |
|
TC88-1 |
1600*1200*1200 |
100℃ |
2 |
0-1.6Kg |
0.37KW |
|
TC88-2 |
1600*1800*1200 |
100℃ |
4 |
0-1.6Kg |
0.55KW |
|
TC88-3 |
3200*1800*1500 |
100℃ |
8 |
0-1.6Kg |
0.75KW |
|
TC88-4 |
4000*1800*1800 |
100℃ |
10 |
0-1.6Kg |
1.5KW |
Applications
The company specializes in the special steam oven and drying room designed and produced for cables and special cables.It uses water vapor for humidity drying to ensure the flexibility if the cable during the drying process.
Equipped with steam generator according to the volume of the oven and drying room (automatic control) through the pipeline solenoid valve.
The outer shell of the steam cable oven is made of Q235 steel plate 8.0mm,and the inner tank is made of high-quality SUS304 stainless steel 6.0mm,and the middle reinforcement is made of 8-12# national standard channel steel.
The door of the steam cable oven is sealed with high temperature resistant silicone rubber mushroom strip to ensure the loss of hot gas during the use of the oven(room).

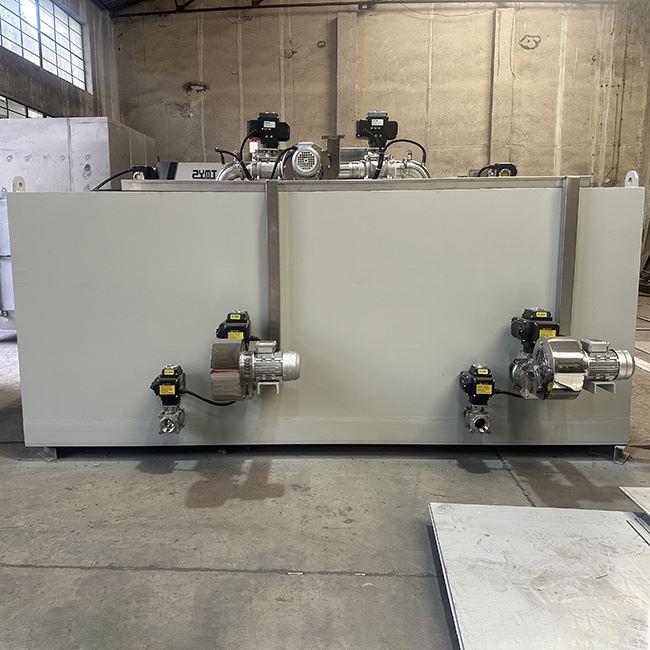

Product Structure
- Steam Generation System: Generates saturated steam using electric or gas heating.
- Circulating Air Duct: Forced convection system ensuring uniform temperature and humidity distribution.
- Insulated Cabin: Double-layer stainless steel structure with embedded insulation material.
- Control System: PLC automatically adjusts temperature and humidity parameters.
- Safety Devices: Pressure relief valve and emergency steam exhaust channel.
