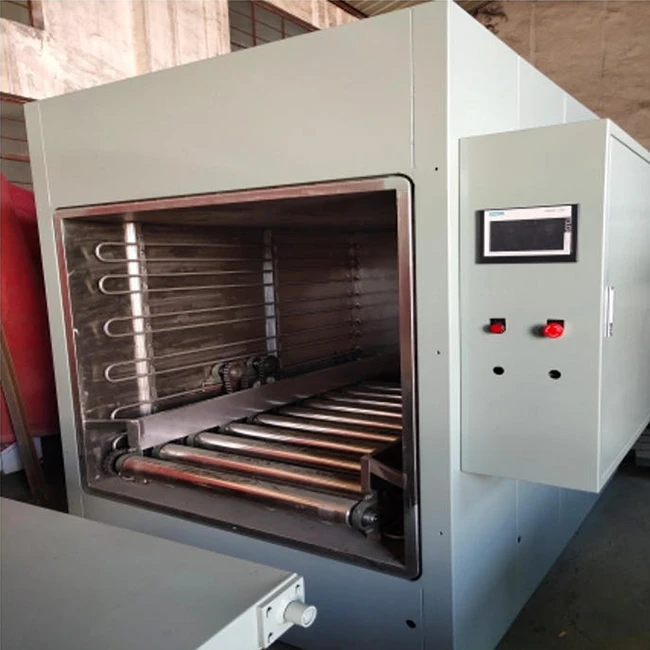

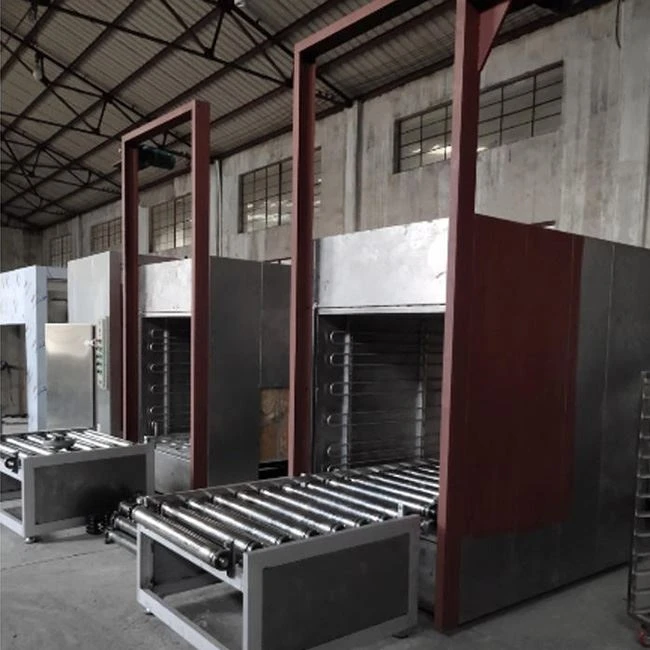

Product Introduction
The automatic vacuum drying oven is an industrial drying equipment that integrates vacuum drying, precise temperature control, and automated control. It reduces the air pressure inside the oven, causing the moisture or solvent in the material to evaporate rapidly at a lower temperature, thus achieving a highly efficient, safe, and uniform drying process while avoiding damage to the product from high temperatures.
Working principle
This automatic vacuum drying oven combines vacuum technology and the principle of heat conduction, enabling efficient drying at lower temperatures while avoiding sample deterioration or damage that may occur at high temperatures.
Features
- Fully automated operation, minimizing manual intervention.
- Low-temperature drying in a vacuum environment, protecting heat-sensitive materials.
- Fast drying speed and high efficiency.
- Good temperature uniformity, ensuring stable product quality.
- Prevents oxidation, discoloration, and contamination.
- Nitrogen purging protection available, suitable for easily oxidized products.
- Supports programmed, multi-stage process control.
- Customizable sizes and functions to meet production needs.
Applications
The automatic vacuum drying oven is mainly used for the treatment and drying of motors by high-speed rail train companies.And mass production of electronics,aerospace research and other units.
Ordering instruction
The user provides the product drying process from the product entering the vacuum drying oven to the whole process of drying the product and the production process requirements.
Product configuration
Vacuum drying oven box configuration,shell Q235 and SUS304 are not stainless steel,shell material thickness 1.5-2.0mm,inner tank material 5.0-6.0mm,transmission.The roller is made of stainless steel ∅100*3.0mm,bearing shell chain sprocket,cycloid needle wheel reducer.
Vacuum system configuration,vacuum pimp,condenser,buffer tank pipeline check valve breaking vacuum ball valve air filter.
Control system,intelligent digital display instrument,vacuum digital display instrument,frequency converter,touch screen,PLC program.
