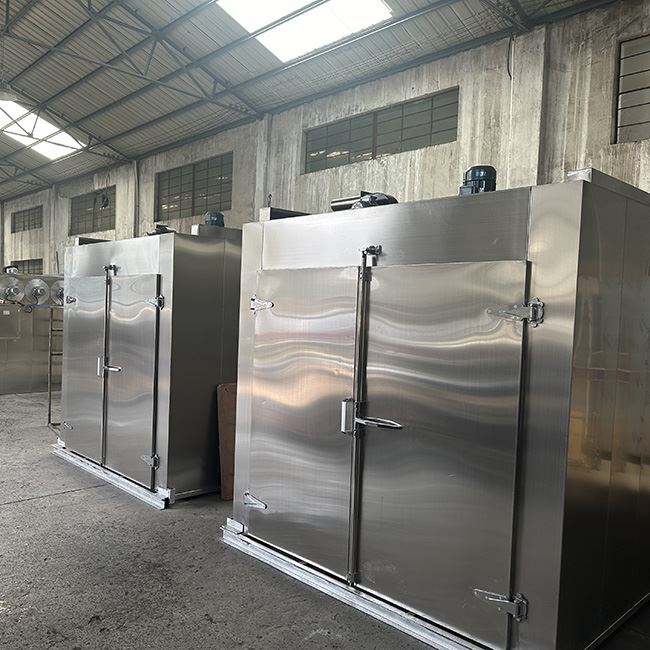

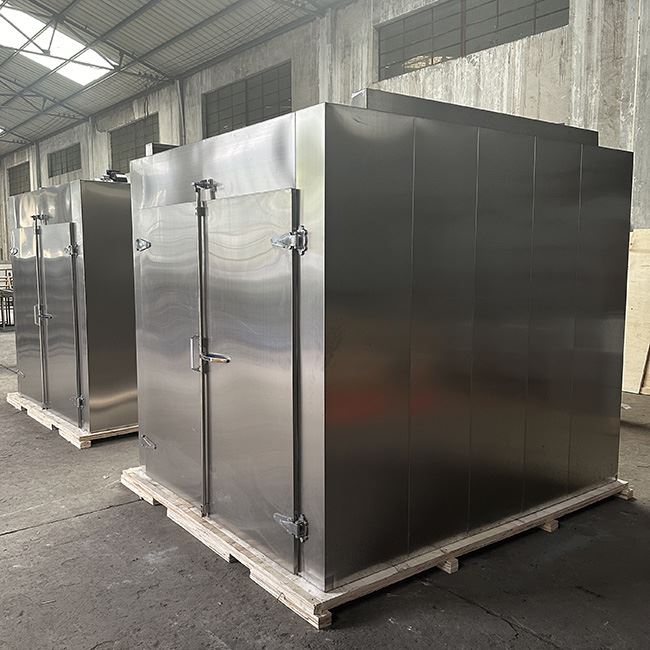

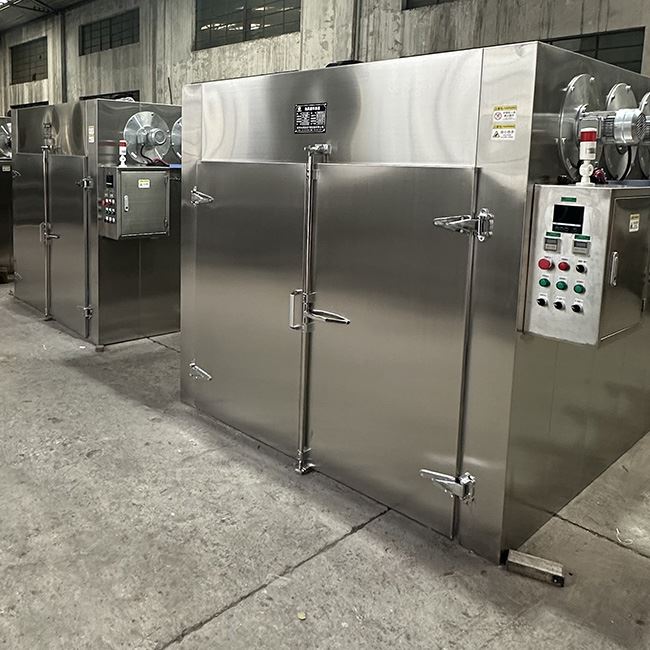

Electric Motor Drying Oven

The electric motor drying oven is an industrial heating system used to remove moisture from electric motors and motor components under controlled temperature conditions. It is commonly used in motor manufacturing, maintenance, refurbishment, and electrical insulation processing.

Nanjing Ranran Tiancheng Drying Equipment Co., Ltd. provides customized drying oven solutions for different motor sizes, loading requirements, and workshop layouts. Depending on the application, the oven can be configured with electric heating, forced hot-air circulation, adjustable ventilation, temperature control, and optional process monitoring.
The chamber dimensions and loading arrangement can be designed for individual motor components, assembled motors, or batches of workpieces. Tray loading, shelves, racks, and trolley systems can be considered according to workpiece weight and handling requirements.

An electric motor drying oven uses controlled heating to support moisture removal from motor windings, electrical insulation, and compatible motor components.
In a forced-air configuration, electric heating elements raise the air temperature, while circulation fans move heated air through the chamber. The circulating air transfers heat to the workpieces, allowing moisture to evaporate. Where the process requires air exchange, an exhaust system removes moisture-laden air and helps maintain the intended drying conditions.
Motors or components are placed on suitable racks, shelves, or a loading trolley. The temperature controller regulates the heating system according to the selected settings. A timer or programmable control sequence can be used to manage the heating cycle, depending on the control configuration.
Drying results depend on several factors, including the initial moisture content, winding structure, insulation materials, motor size, loading arrangement, and airflow. Large motors and densely loaded batches may require longer heat-up periods than smaller components.
For winding varnish curing, the required temperature and holding time must follow the varnish manufacturer's specifications. Moisture drying and varnish curing are related but distinct processes, so the equipment configuration should reflect the actual production or maintenance procedure.

The unique hot air circulation system ensures even temperature distribution inside the working chamber.

Adopting full-process high-air-volume ventilation and exclusive front air exchange function, it keeps the concentration of flammable gas generated by paint impregnation inside the chamber within a safe range at all times.

Sealed electric heating tubes with low surface temperature deliver stable performance and an extended service life.

The trolley is fitted with tracks, paired with manual or electric trolleys for loading workpieces or test samples, greatly boosting work efficiency.

Equipped with explosion-proof devices and a special pressure relief door design to minimize losses caused by accidental hazards.

The heating unit adopts high-temperature heating tubes with flameless heating, making the electric Electric Motor Drying Oven easy to maintain.

Temperature is controlled by a high-precision intelligent digital programmable temperature controller with auto-tuning PID parameters, which can intelligently adjust parameters according to process requirements.

Motor Winding Moisture Removal
An electric motor drying oven can be used to remove moisture from motor windings after storage, cleaning, maintenance, or exposure to humid conditions. The drying procedure should follow the motor manufacturer's guidance to avoid damage to insulation materials.
Stator and Rotor Component Drying
Stators, rotors, and other compatible motor components may require controlled drying before assembly, insulation treatment, or further processing. Chamber size and loading fixtures should be selected according to component dimensions and weight.
Insulating Varnish Curing
Some motor manufacturing and refurbishment processes require heating after winding impregnation or varnish application. The oven can be configured for compatible heat-curing processes, with the temperature profile and holding time based on the varnish manufacturer's technical requirements.
Motor Manufacturing
During production, an electric motor drying oven may be used at designated stages of insulation preparation, component drying, or thermal treatment. The loading method and heating cycle can be adapted to the production batch and workpiece specifications.
Motor Repair and Refurbishment
Motor repair workshops may use drying ovens after cleaning or other maintenance procedures when moisture removal is required. The process should be selected according to the motor's condition, insulation system, and repair instructions.
Electrical Equipment Components
The oven may also be suitable for drying compatible coils, electrical windings, and related insulation components. Before processing, material temperature limits and any requirements involving solvents or volatile substances should be confirmed.
