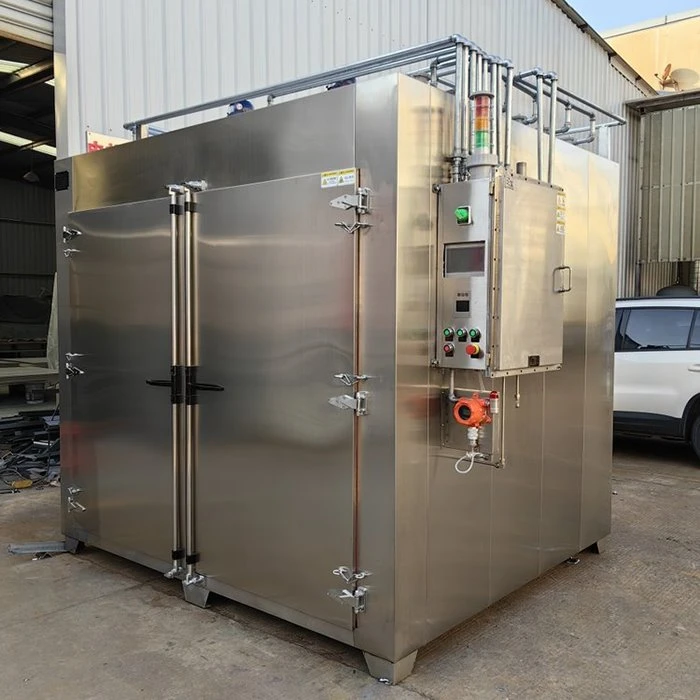

Explosion-proof Steam Oven

The explosion-proof steam oven uses steam as its heat source and adds the protective measures needed where flammable vapors or other ignition hazards are present. It runs controlled drying, heating, and compatible curing steps in industrial production.
Heat reaches the chamber through a steam coil or heat exchanger, so there is no combustion inside the oven. The chamber temperature depends on the steam supply, heat exchanger design, insulation, and thermal load.
Nanjing Ranran Tiancheng Drying Equipment Co., Ltd. configures each oven around the material, process temperature, batch size, and installation conditions. The equipment can combine a steam heating system, hot-air circulation, adjustable exhaust, temperature control, and the electrical and protective components the application calls for.

The explosion-proof steam oven adopts a steam heating system to generate high-temperature steam, which is delivered into the oven chamber through pipelines to heat and dry materials. Meanwhile, the temperature and humidity control system precisely regulates internal temperature and humidity according to preset parameters. During operation, built-in explosion-proof components and safety protection devices monitor the working status in real time to guarantee safe equipment operation.

Indirect steam heating - heat enters through a coil or heat exchanger, with no combustion inside the chamber.

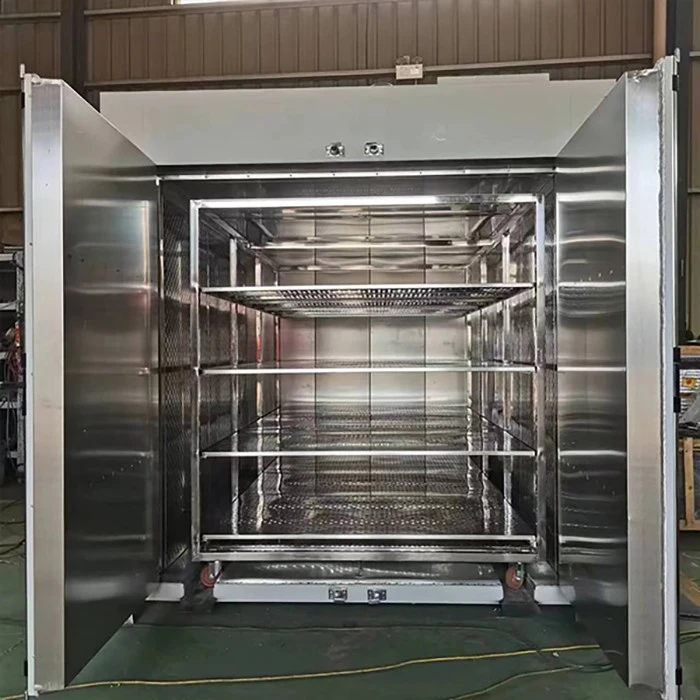

Loading built to the product - shelves, racks, or trolleys sized to the workpieces and batch.
Condensate management - drainage is configured for the selected steam heating arrangement.
Heating performance depends on steam conditions, heat exchanger capacity, insulation, loading, and airflow.

Applications
Metal and industrial parts heated indirectly - components that suit a steam-heated chamber, such as parts dried or preheated after washing, machining, or phosphating, where the temperature and cycle follow the material and geometry.
Post-wash moisture removal - parts coming off a water-based cleaning line, with chamber, airflow, and exhaust sized to the moisture they carry in.
Coating and adhesive steps - controlled heating on water-based or low-volatility systems where the process temperature and heat transfer can be met. If the coating contains solvents or other volatile ingredients, their compatibility with the oven and its protective design is checked before use.
Processes where ignition control is assessed - the explosion-proof steam oven can carry protective measures suited to the assessed conditions, but only after a documented hazard assessment. A process involving flammable material is not automatically handled by the same oven configuration.

To evaluate a suitable explosion-proof steam oven, please provide:
Material name, composition, and intended process
Relevant safety data sheet (SDS), if hazardous substances are involved
Workpiece dimensions, weight, and batch capacity
Required operating temperature and treatment time
Steam supply pressure and available steam capacity
Initial moisture condition and expected drying result
Whether the process may release flammable vapors or combustible dust
Hazardous-area classification and required standards or certifications
Available installation space, ventilation, and condensate drainage conditions
Required control, monitoring, and protective functions
This information allows us to determine the chamber dimensions, steam heating system, airflow, exhaust, controls, and protective measures required for your application.
