Product Introduction

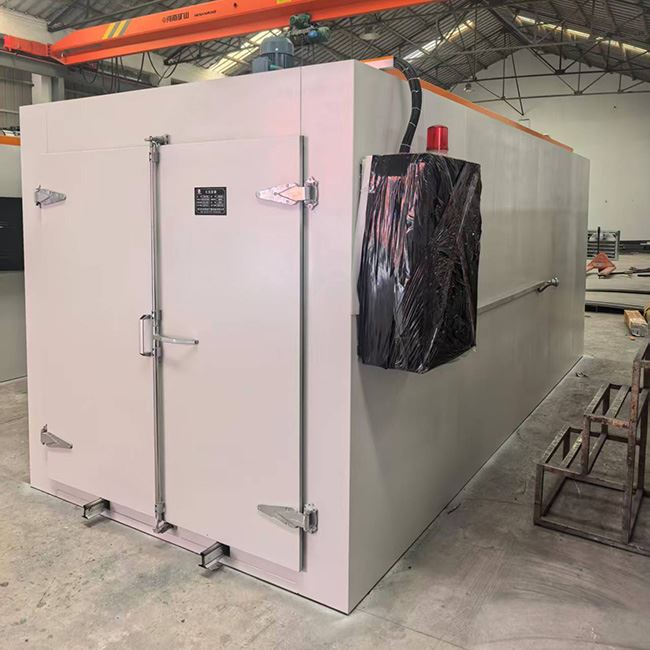

Hot air circulation drying oven is equipment that dries materials via a hot air circulating system.
Working principle
The air circulation system of this oven adopts fan forced air supply to achieve even and efficient air circulation. Driven by the circulation blower motor, the wind wheel delivers air through the heater to generate hot air. The hot air flows through air ducts into the inner chamber of the drying oven. The exhausted air is drawn back into the air ducts as a new air source for recirculation and reheating. This design ensures uniform temperature throughout the chamber. When opening or closing the door causes temperature fluctuations, the air circulation system rapidly restores operating conditions until the preset temperature is reached.
Features
High efficiency and energy saving: Hot air circulation improves thermal efficiency and saves energy. Heat is fully utilized, reducing energy waste.
Uniform temperature: Hot air circulates evenly, resulting in uniform temperature distribution within the chamber. This helps ensure that the materials or samples being heated are heated evenly.
Rapid heating and recovery: The oven can heat up quickly and also recover to the set temperature value rapidly.
Stable operation: It exhibits stable characteristics during operation, ensuring the stability and consistency of materials.
Automatic temperature control: Hot air circulating drying ovens are typically equipped with advanced temperature control systems that enable automatic temperature control.
The hot air circulation drying oven is widely used in many fields:
Laboratories For precision operations including sample drying and reagent dehydration.
Industrial Production Widely used in food, chemical, electronics and other industries, such as powder drying and coating curing.
Medical Field Sterilizing instruments and drying medical materials to maintain a sterile environment.
Product Structure

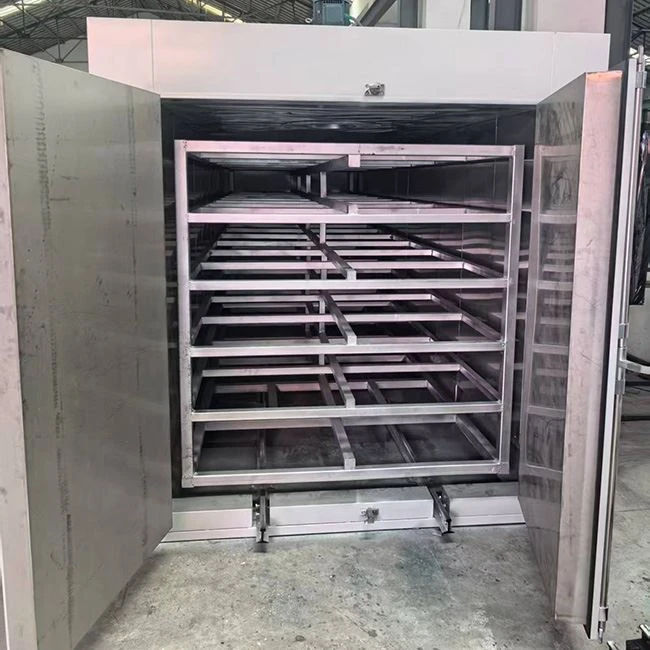

The hot air circulation drying oven is constructed with angle steel, stainless steel sheets and cold-rolled steel plates. The thermal insulation layer is filled with high-density aluminum silicate wool, which delivers excellent heat preservation performance and protects operator safety. Heaters can be installed at the bottom, top or both sides of the chamber. Temperature regulation is realized via a digital intelligent controller. Two air duct designs are available for this oven: horizontal air supply and vertical air supply.
