Product Introduction

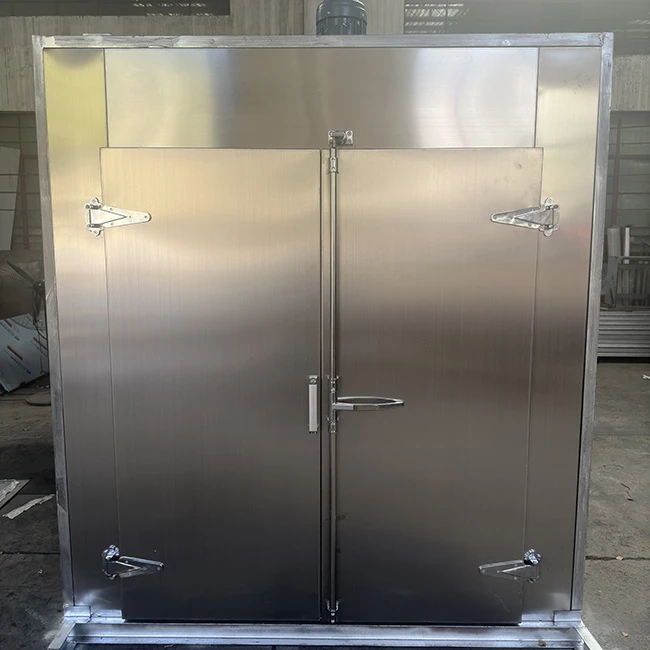

The Industrial industrial curing oven is a device used to accelerate the curing of materials. Its main function is to use heat to evaporate solvents or initiate chemical reactions in the material, thereby quickly achieving a curing effect. Compared with traditional natural drying, ovens can significantly shorten production cycles and improve efficiency.
Working principle
The industrial curing oven generates heat through heating elements, which heats the items inside the oven, causing the chemical components to undergo cross-linking and other curing reactions at high temperatures. At the same time, the control system precisely controls parameters such as temperature and time to ensure uniform curing effect.
Features
Precise Temperature Control: An advanced control system maintains a stable temperature throughout the entire cycle.
Uniform Heat Distribution: Optimized airflow design ensures uniform curing throughout the chamber.
Programmable Process Control: Supports multi-stage heating, heat preservation, and cooling programs for different materials.
Multiple Heating Methods: Optional electric heating, steam heating, gas heating, or thermal oil heating systems.
High Energy Efficiency: Excellent insulation and efficient air circulation reduce heat loss and operating costs.
Reliable Industrial Performance: Designed for continuous operation in harsh production environments.
Flexible Chamber Configurations: Available in cabinet, walk-in, trolley, tunnel, and conveyor designs.
technical parameters
|
Model |
Working Chamber Size (D × W × H) |
Temperature range |
Circulation Motor | Heating Power | Temperature Uniformity | Remarks |
|
TC88-4 |
800*800*1000mm |
200℃(Adjustable) |
1.1KW |
12KW |
≤±3℃ |

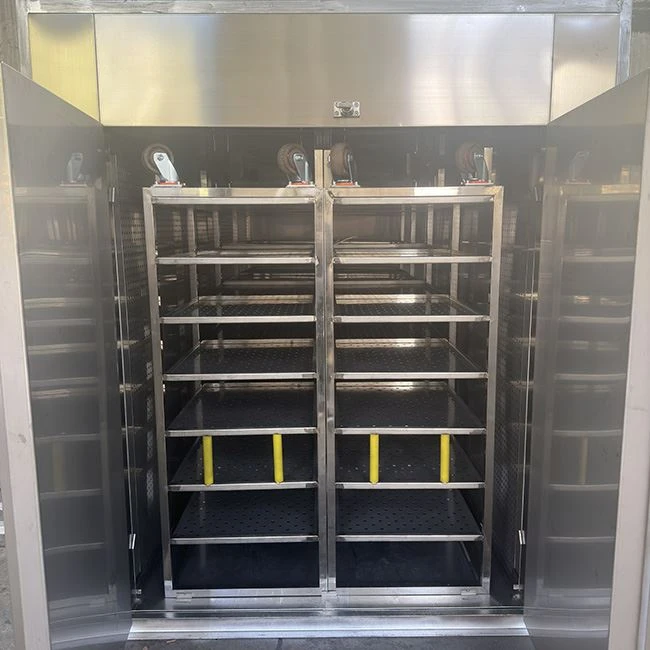

The shell of curing oven is made of Q235 cold rolled steel plate. The inner chamber is SUS304, and heating tubes are 304 stainless steel. Internal configurations of the curing oven can be customized as per customer requirements. We undertake manufacturing of various non-standard ovens |
|
TC88-5 |
1000*1000*1200mm |
200℃(Adjustable) |
1.5KW |
18KW |
≤±3℃ |
|
|
TC88-6 |
1200*1200*1500mm |
200℃(Adjustable) |
2.2KW |
20KW |
≤±3℃ |
|
|
TC88-7 |
1200*1300*1600mm |
200℃(Adjustable) |
2.2KW |
22KW |
≤±3℃ |
|
|
TC88-8 |
1300*1600*1800mm |
200℃(Adjustable) |
3KW |
25KW |
≤±3℃ |
|
|
TC88-9 |
1800*1800*2000mm |
200℃(Adjustable) |
3KW |
30KW |
≤±3℃ |
|
|
TC88-10 |
2500*1800*2000mm |
200℃(Adjustable) |
3KW*2sets |
36KW |
≤±3℃ |
|
|
TC88-11 |
3000*2000*2000mm |
200℃(Adjustable) |
3KW*3sets |
40KW |
≤±3℃ |
Applications
Industrial curing ovens are mainly used in the following fields:
- Electronics Manufacturing: Curing conformal coatings for circuit boards, typically at 60-80℃
- Automotive Industry: Curing adhesives for automotive lights, requiring 120℃ for 30 minutes
- Composite Materials: Curing carbon fiber prepregs, with staged temperature increases to above 180℃.
