Product Introduction

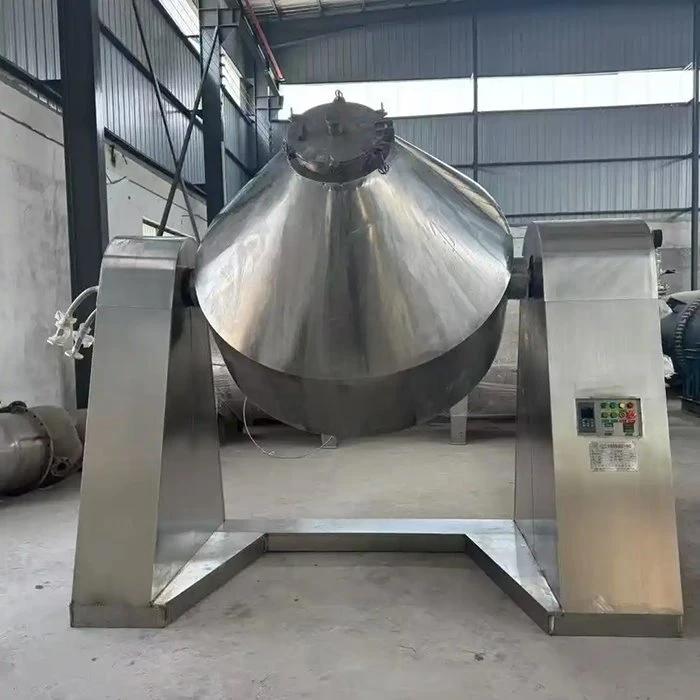

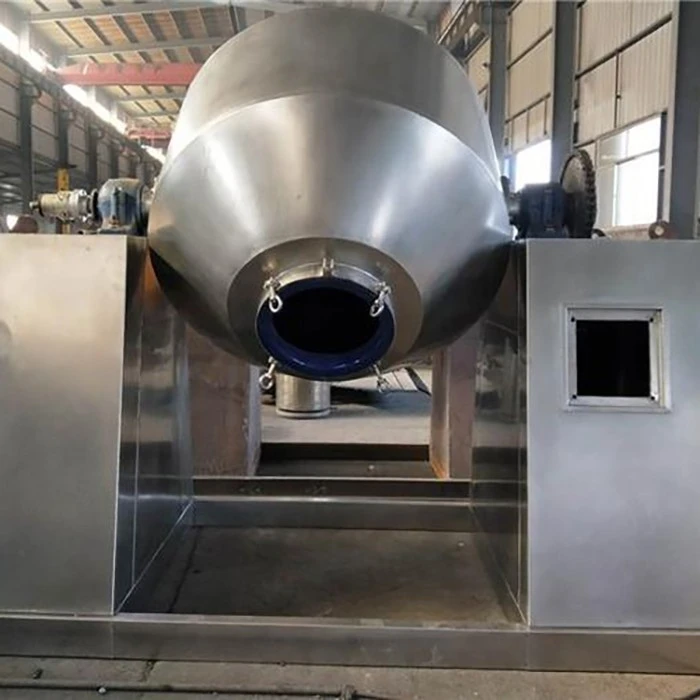

The double cone rotary vacuum dryer is an intermittent drying device. It utilizes a rotating double-cone cylinder and a vacuum environment, employing indirect heating technology to rapidly dry materials. It is particularly suitable for heat-sensitive, easily oxidized, toxic, or solvent-recoverable materials.
Working principle
Heating and Heat Transfer: The heat transfer medium (steam/heat transfer oil) circulates within the jacket, and heating is achieved through conduction within the tank.
Material Movement: The rotation speed is adjustable from 2-8 rpm, creating a continuous "waterfall flow" of material within the cone, achieving a mixing uniformity CV value of less than 5%.
Vacuum Exhaust: Maintaining a working vacuum of 0.08 to -0.09 MPa, the moisture evaporation rate is 3-5 times faster than atmospheric pressure drying.
Moisture Migration: Driven by a pressure gradient, the material moisture content can be reduced from 30% to 0.5% without damaging heat-sensitive components.
Features
Low-temperature drying: Operating temperature of 40-80℃, particularly suitable for preserving the active ingredients of traditional Chinese medicine.
Uniform and efficient: Comparative tests show that the drying uniformity is 40% higher than that of tray-type equipment, with batch-to-batch variation of less than 2%.
Low-oxygen environment: Oxygen content is less than 0.5%, effectively preventing the degradation of easily oxidized components such as vitamin C (actual retention rate exceeds 95%).
High adaptability: Successfully used in scenarios such as dehydration of chemical waste (moisture content reduced from 45% to 8%) and antibiotic crystallization drying.
Easy cleaning: CIP online cleaning system, cleaning time is less than 1.5 hours when changing materials.
Applications
The double cone rotary vacuum dryer is suitable for vacuum drying and mixing of powder and granular materials in the pharmaceutical, food, and chemical industries, and is especially suitable for materials with the following requirements:
- Heat-sensitive materials that cannot withstand high temperatures;
- Materials that are easily oxidized and hazardous;
- Materials that require the recovery of solvents and toxic gases;
- Materials that require extremely low residual volatile content;
- Materials that require thorough and uniform mixing.
